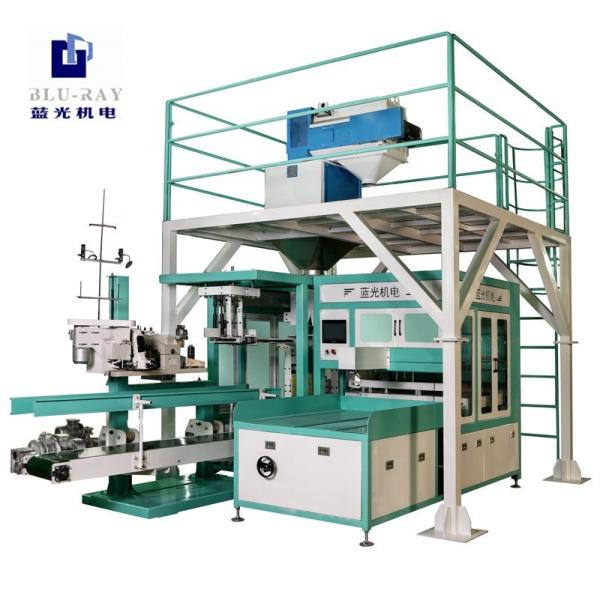

500BPH Vertical Filling Automatic Bagger Machine Weighing Scales

Place of Origin : Jiangxi, China

Brand Name : BlueRay

Certification : CE ISO

Supply Ability : 100 Set/Sets per Month automatic bagging machine

Packaging Details : 1, automatic bag palletizer machine will be packed in a big wooden case, then in the container 2, Customized needs available

MOQ : 1.0 Set/Sets

Price : $30,000.00 - $60,000.00 / Set

Model Number : ZDBZ-600

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction works , Energy & Mining

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Thailand

Application : Food, Chemical, Machinery & Hardware, bag filling,weighing,closing

Automatic Grade : Automatic

Driven Type : Pneumatic

Voltage : AC380V/50HZ

Dimension(L*W*H) : 4000*2800*2400mm

Weight : 2300kg

Warranty : 1 YEAR, 1 Year

After-sales Service Provided : Online support, Video technical support, Free spare parts, Field maintenance and repair service

Machinery Capacity : 500BPH

Filling Material : Powder, granule materials such as feed, fertilizer, grains

Filling Accuracy : 0.1-0.2%

Marketing Type : New Product 2020

Warranty of core components : 1 YEAR

Core Components : Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine

Capacity : 500-600bags hourly

Main Function : Auto Weighing

Usage : Weighing Packing Palletizing

Contact Now

Product Description
FULL AUTOMATIC BAGGING STITCHING MACHINE, FULL AUTOMATIC PACKAGING LINE
Description:
ZDBZ-600 automatic packaging system is composed of our company's quantitative weighing system, automatic bag feeding and loading device, automatic bag clamping device, automatic bag moving machine, belt conveyor, automatic sewing machine and so on.
The entire set of equipment from material weighing, unloading, bag removal, bag clamping, bag moving, labeling, sewing and other actions are all automatically controlled. The staff only needs to arrange the packaging bags and labels and place them in the designated location of the device. The work is simple and easy, and one person can monitor several sets of equipment at the same time.
Specification
The full automatic bagging stitching machine included the weighing machine, unloading machine , bag removal machine, bag clamping device, bag moving machine , labeling machine, sewing machine and other actions.
Whole set are controlled by the PLC system and full touch screen panel(HMI), it's full automatic, no need worker placing the empty bags.
It can storage 400pcs empty bags one time, automatic pick up the empty bags by the suckers, automatic bag giving, automatic bag clamp and release, automatic bag holding and moving, automatic bag sewing, and next process can connect with our automatic palletizer for stacking bags on pallet full automatically.
Item
ZDBZ-600 FULL AUTOMATIC BAGGING SEWING MACHINE
Application materials
each type small size granule mateials such as animal feed, fertilizer, rice, grains, PE,PP etc
Weighing range
20-50kg/bag or customized
Scale interval
10g
Feeding type
gravity feeder/belt feeder
Weighing hopper
dual-weighing hopper
Precision
±50-100g based on your materials characteristics
Capacity
around 600bags/hour
System
PLC system and 10" full touch scren HMI
Aplicable bag type
airtight bags, woven bags with lining, paper bags, kraft bags etc
recommend bag size: width 50-65cm, length 80-110cm or customized
Air source
0.5-0.8Mpa, 750nl/min
Dimensiion(L*W*Hmm)
4000*2800*2400mm, details size see the drawing
Power
4.28kw
Voltage
single/three phase AC220V/AC380V/50HZ
Working environment
(-10℃~40℃)
Relative humidity
≤90%RH non condensation
Machine materials
Q235 carbon steel with anti-rust painting or product contact parts 304 stainless steel, non-contact parts carbon steel.
FAQ
1. Can you offer oversea service?
Engineers available to service overseas. Also we will provide you manual, photos, video to help you operation the machine and 24 hour online service if you have any problem about the packaging machine.

2. How to use the machine?
Before send to you the packing machine, we will installation and testing welled then whole set packed in the wooden box, so you noneed installation again, when you received it, you can start working, also we will supply the installation catalogue or video online, if necessary we can dispatch enigneers to your site.

3. How about the guarantee period?
One year whole machine guarantee, and spare parts provide.

4. What is the lead time?
15-30days days after received the deposit, final as per your order.
