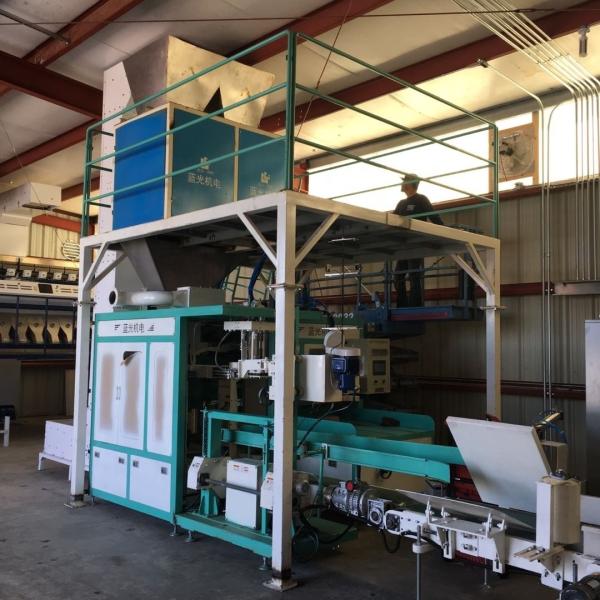

25kg Beans Granular Automatic Bagger Machine

Name: 25kg Beans Granular Automatic Bagger Machine
Brand: BlueRay
Price: 30 USD

Quality 25kg Beans Granular Automatic Bagger Machine wholesale

Place of Origin : Jiangxi, China

Brand Name : BlueRay

Certification : CE CMC

Supply Ability : 100 Set/Sets per Month automatic bagging machine

Packaging Details : 1, automatic bag palletizer machine will be packed in a big wooden case, then in the container 2, Customized needs available

MOQ : 1.0 Set/Sets

Price : $30,000.00 - $60,000.00 / Set

Function : FILLING, Sealing, filling and packing beans granular into bag

Driven Type : Pneumatic

Voltage : 220V/380V/50Hz

Dimension(L*W*H) : 4000*2800*2400mm

After-sales Service Provided : Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Core Components : Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox

Capacity : 500-600bags hourly

Main Function : Auto Weighing

Usage : Weighing Packing Palletizing

Contact Now

FULL AUTOMATIC BAGGING STITCHING MACHINE, FULL AUTOMATIC PACKAGING LINE

Description:

ZDBZ-600 automatic packaging system is composed of our company's quantitative weighing system, automatic bag feeding and loading device, automatic bag clamping device, automatic bag moving machine, belt conveyor, automatic sewing machine and so on.

The entire set of equipment from material weighing, unloading, bag removal, bag clamping, bag moving, labeling, sewing and other actions are all automatically controlled. The staff only needs to arrange the packaging bags and labels and place them in the designated location of the device. The work is simple and easy, and one person can monitor several sets of equipment at the same time.

Specification

The full automatic bagging stitching machine included the weighing machine, unloading machine , bag removal machine, bag clamping device, bag moving machine , labeling machine, sewing machine and other actions.

Whole set are controlled by the PLC system and full touch screen panel(HMI), it's full automatic, no need worker placing the empty bags.

It can storage 400pcs empty bags one time, automatic pick up the empty bags by the suckers, automatic bag giving, automatic bag clamp and release, automatic bag holding and moving, automatic bag sewing, and next process can connect with our automatic palletizer for stacking bags on pallet full automatically.

Item	ZDBZ-600 FULL AUTOMATIC BAGGING SEWING MACHINE

Application materials	each type small size granule mateials such as animal feed, fertilizer, rice, grains, PE,PP etc

Weighing range	20-50kg/bag or customized

Scale interval	10g

Feeding type	gravity feeder/belt feeder

Weighing hopper	dual-weighing hopper

Precision	±50-100g based on your materials characteristics

Capacity	around 600bags/hour

System	PLC system and 10" full touch scren HMI

Aplicable bag type	airtight bags, woven bags with lining, paper bags, kraft bags etc
	recommend bag size: width 50-65cm, length 80-110cm or customized
Air source	0.5-0.8Mpa, 750nl/min

Dimensiion(LWHmm)	400028002400mm, details size see the drawing

Power	4.28kw

Voltage	single/three phase AC220V/AC380V/50HZ

Working environment	(-10℃~40℃)

Relative humidity	≤90%RH non condensation

Machine materials	Q235 carbon steel with anti-rust painting or product contact parts 304 stainless steel, non-contact parts carbon steel.

After Sales Service

The machine before sent to you will installation and testeing welled in our factory. When the machine arrived you, we can provide
the following service to help you installation, debugging and opeation the machine:

1, Field installation, commissioning and worker training
2, Video technical support
3, Online support
4, Free spare parts
5, Field maintenance and repair service

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging serviceswill be provided.

1, inner package with stretch anti-rust and avoid the machine surface broken.
2, the full automatic packing machine before send to you will installation and testing welled then whole set package in
40HQ(container), the machine weight around 4000kg.

Jiangxi Blueray Mechanical & Electrical Equipment CO.,LTD

Jiiangxi Blueray is a 20 years professional manufacturer of semi automatic packing machine, full automatic bagging stitching machine, automatic palletizer, sewing machine, heat sealing machine, conveyor etc. The factory located in Nanchang city Jiangxi province with convenient transportation access.

All of our products have got the CE, B.V, CMC certificate and exported to more than 50 countries all over the world.

OEM and ODM orders are welcomed.

Package machine working process

Raw materials - cutting- drilling - welding - folding- polishing - rust prevention - paint spraying - assembling-testing-packaging and transport-after service

We have attend many trade shows in China mainland and overseas, such as VICTAM Asia and Animal Health & Nutrition, China Feed Expo, CHINAPLAS, VIV, EUROTier China, Canton Fair, HK Source Fair, IPPE etc.

FAQ

1. Can you offer oversea service?
Engineers available to service overseas. Also we will provide you manual, photos, video to help you operation the machine and 24 hour online service if you have any problem about the packaging machine.

2. How to use the machine?
Before send to you the packing machine, we will installation and testing welled then whole set packed in the wooden box, so you noneed installation again, when you received it, you can start working, also we will supply the installation catalogue or video online, if necessary we can dispatch enigneers to your site.

3. How about the guarantee period?
One year whole machine guarantee, and spare parts provide.

4. What is the lead time?
15-30days days after received the deposit, final as per your order.
